KingQuad 750 buyer overview
The Suzuki KingQuad 750 sits at the heavy-duty end of the brand’s utility-ATV range. In South Africa, the relevant derivative is the LT-A750X, with a 722 cc liquid-cooled, single-cylinder engine and a continuously variable transmission offering two forward ranges and reverse. That combination frames the buying decision more clearly than the 750 name alone: this is a substantial off-road utility vehicle for a rider who needs an ATV layout and is comfortable operating a larger machine. It is not a road motorcycle with a passenger seat, and the factory safety wording says never to carry passengers or ride on public roads.

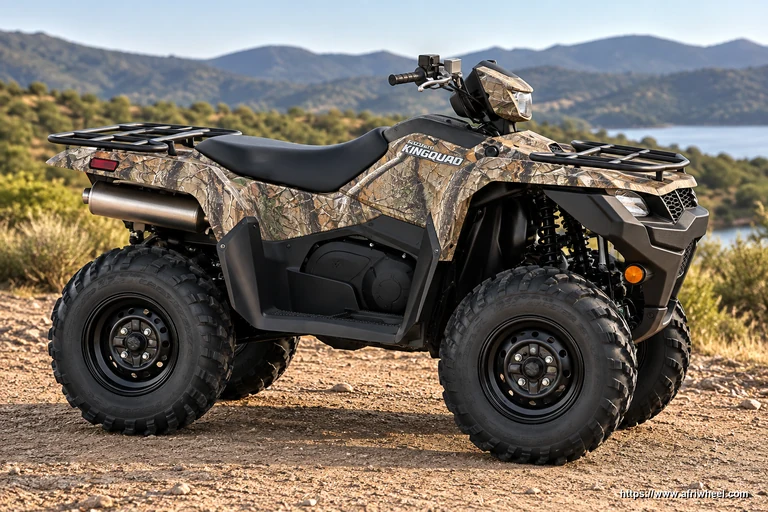

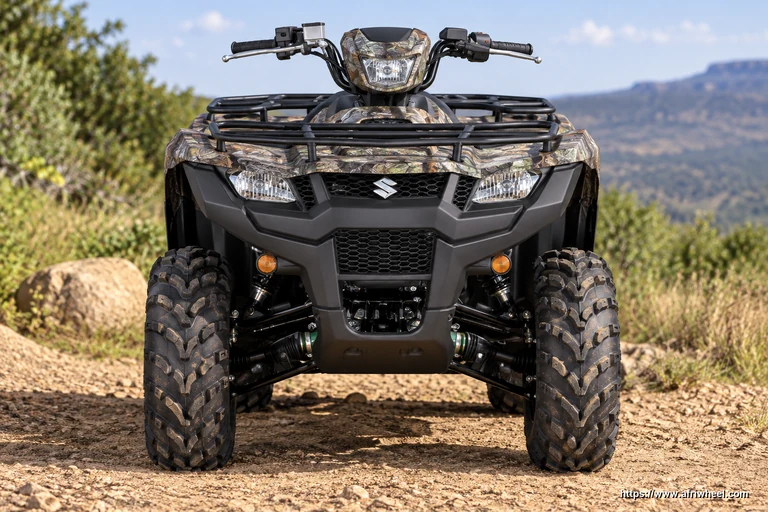

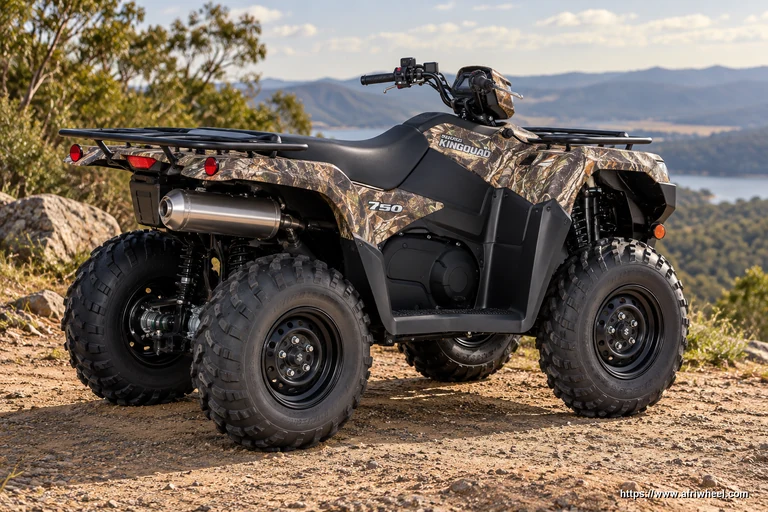

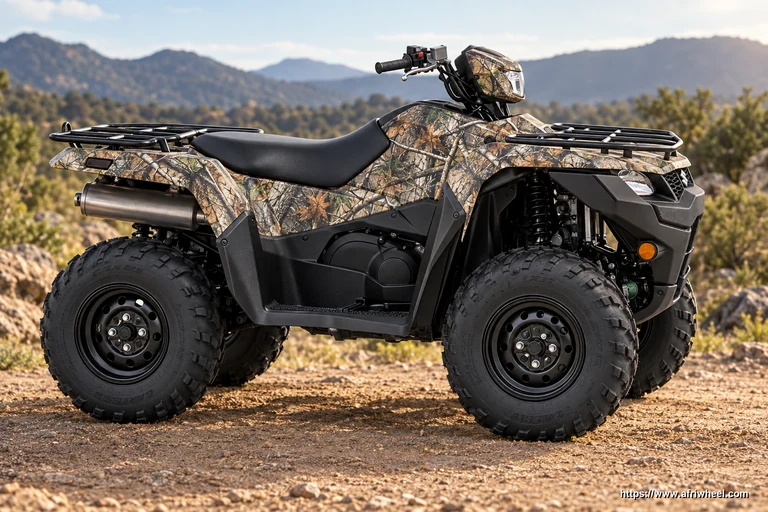

The chassis figures help buyers picture its scale before arranging a viewing. The LT-A750X is listed at 304 kg kerb mass, with a 1,280 mm wheelbase, 270 mm ground clearance and an 880 mm seat height. Its 2,135 mm length and 1,250 mm width also matter when checking a shed entrance, trailer deck, storage bay or access route. These numbers describe a broad, heavy ATV rather than a compact recreational quad. A buyer should measure transport and storage space, then consider who will load and manoeuvre it when the engine is off.

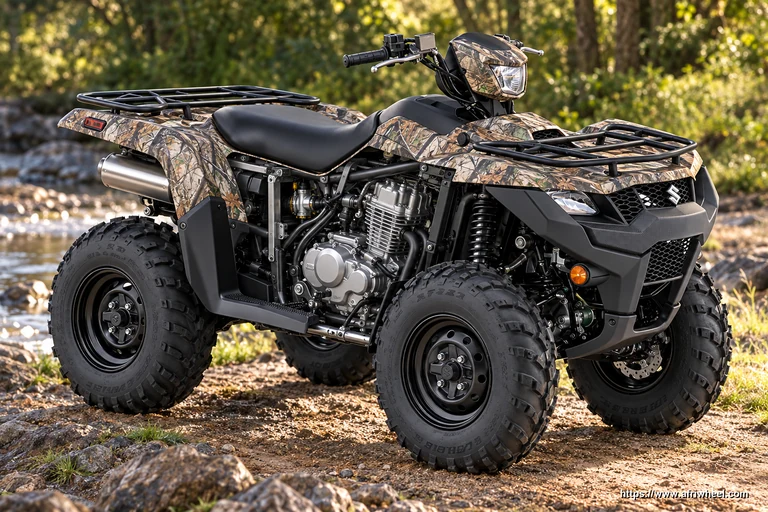

Its engine is a 722 cc four-stroke single with liquid cooling and DOHC valve operation. The published bore and stroke are 104 by 85 mm, while the listed fuel tank holds 17.5 litres. Suzuki’s local specification pairs the engine with a CVT, two forward ranges and reverse. This removes a conventional foot-selected multi-gear transmission from the riding task, but it does not remove the need to choose a suitable range and manage throttle carefully over changing ground. The buyer’s important question is whether the automatic arrangement and the ATV’s intended working role match the terrain and tasks involved.
The drive layout gives the LT-A750X its utility focus. The listed system supports two-wheel drive, four-wheel drive and a four-wheel-drive differential-lock setting. Its final drive is by shaft, with a V-belt primary drive and centrifugal clutch recorded for the CVT system. Buyers should understand the controls and the conditions for selecting each mode before relying on them in the field. A specification list cannot establish how a particular load, slope or surface will behave; practical familiarisation and the operating instructions remain central to responsible use.

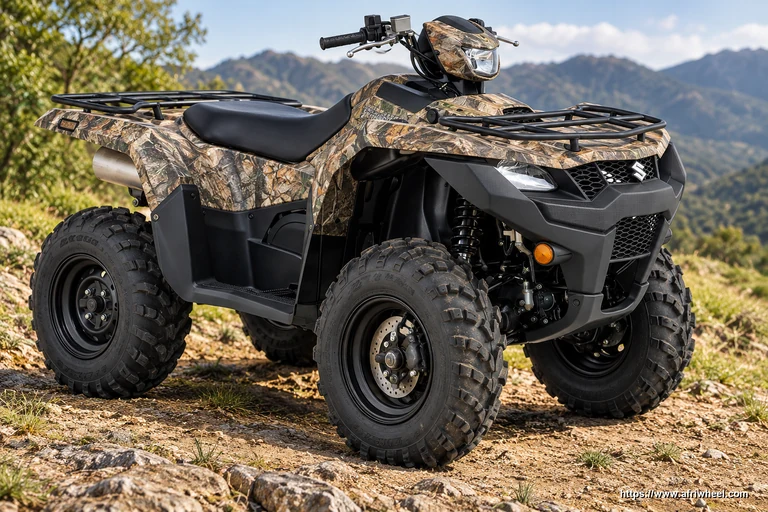

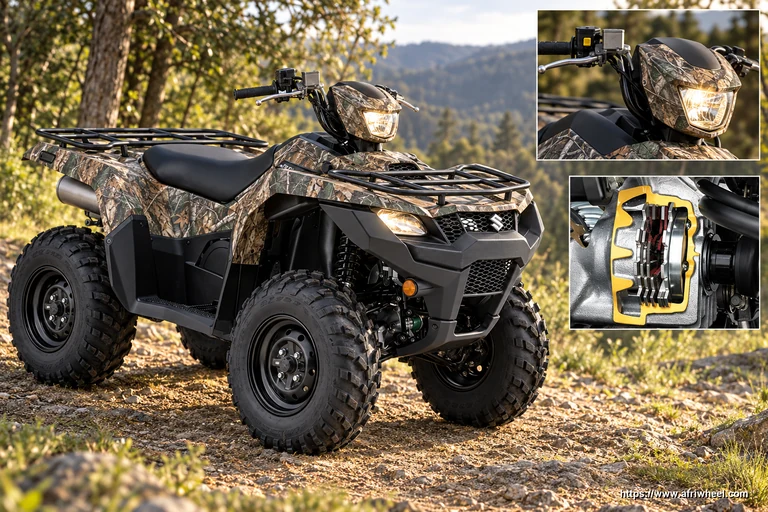

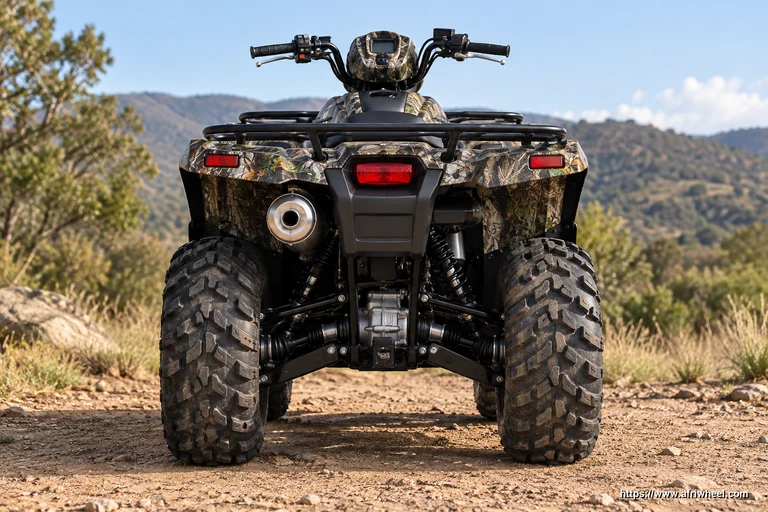

Suspension and braking are designed around the ATV format. Independent double-wishbone suspension is listed at both ends, with five-way spring-preload adjustment. The front uses twin disc brakes, while the rear uses a sealed oil-bathed multi-disc brake rather than a conventional exposed rotor. Tubeless AT25x8-12 front and AT25x10-12 rear tyres are specified. Ground clearance is 270 mm, but that figure alone does not define suitability for every obstacle or working route. Buyers should match the machine and tyres to the ground they expect to cover, and inspect the recommended maintenance requirements for the intended use.

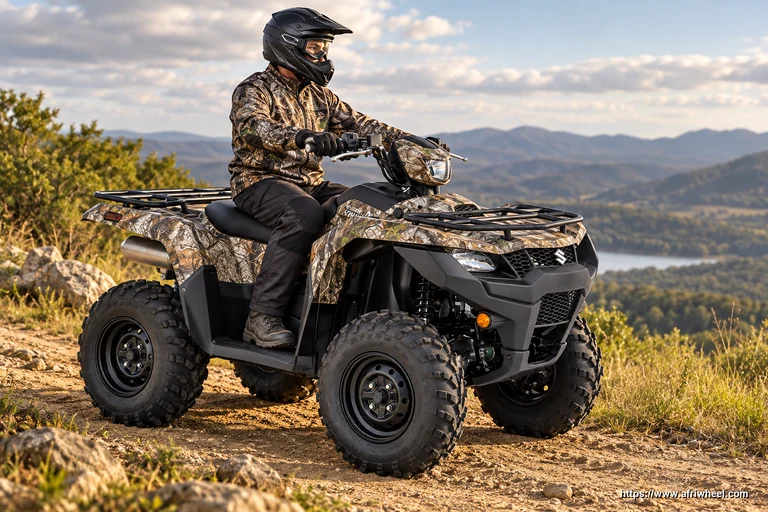

The South African equipment distinction is important when comparing listings and photographs. The local LT-A750X specification says power steering is not available in South Africa, even though international KingQuad material may show power-steering versions within the wider family. A dealer quotation should name LT-A750X and the supplied steering equipment rather than relying on a generic KingQuad 750 description. Similarly, the factory safety instruction against carrying passengers means the ATV’s broad seat shape should not be interpreted as permission for a second occupant. Its listed seating capacity is one.

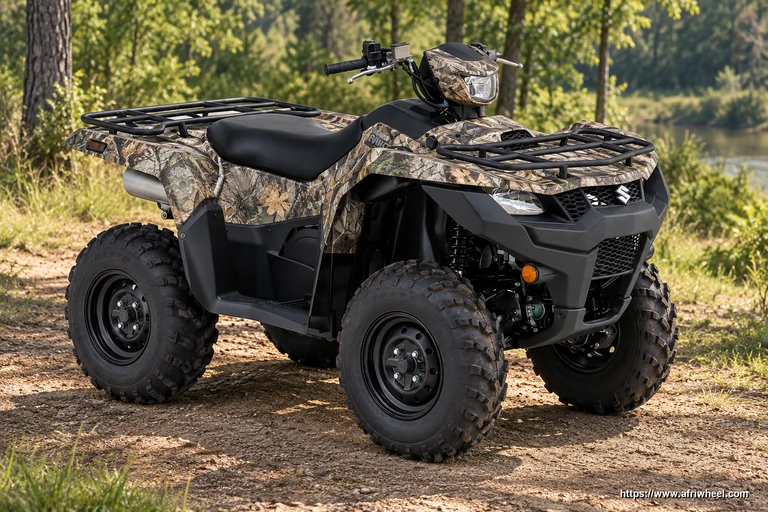

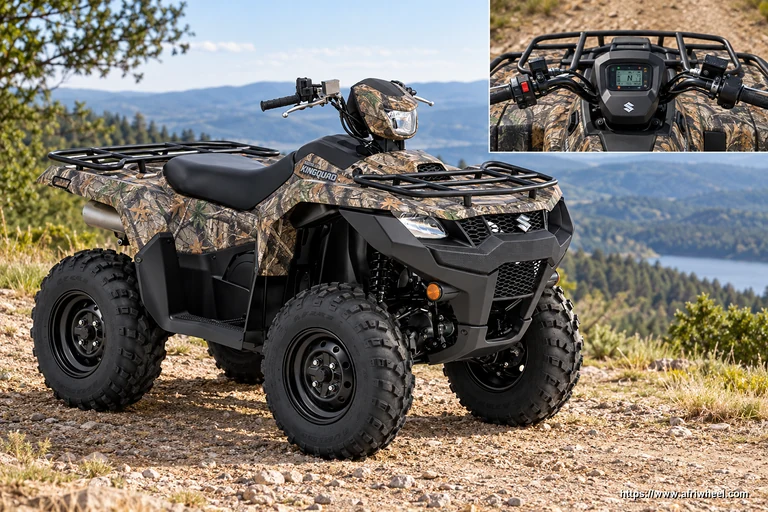

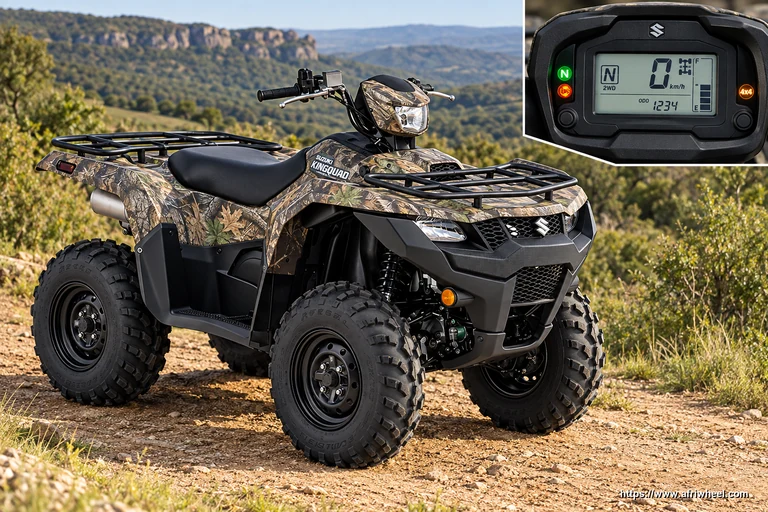

The cockpit and utility details are practical comparison points. The local record includes a digital speedometer, odometer, two trip meters, fuel gauge and gear indicator, as well as a 12-volt DC outlet. These features help with basic monitoring and accessory power, but buyers should confirm the exact outlet connector and accessory requirements before planning devices or work equipment. The front and rear carriers are part of the useful ATV format; however, published family-level carrier and towing figures are only approximate equivalents in this package. Do not treat them as certified limits for the exact South African LT-A750X without confirming the owner’s manual or supplied vehicle documentation.
A KingQuad 750 price in South Africa should therefore be judged against the complete intended setup, not just the machine’s engine size. Ask the selling dealer for an itemised quote that identifies the LT-A750X, included equipment, preparation, transport and any accessories. Then establish the permissible rack loads, towing capacity, maintenance schedule and operating restrictions from the manual for the actual unit. This is especially important if the ATV will carry tools or tow equipment, since the available approximate family figures should not be used to plan a safety-critical load.
The KingQuad 750 is a strong shortlist candidate for a buyer who specifically needs a large one-person utility ATV, values selectable drive modes and wants independent suspension at both ends. It is a poor match for someone seeking public-road transport, legal passenger carrying or power steering on the South African LT-A750X. Before committing, verify that its dimensions, 304 kg mass, single-seat operating format, local steering specification and intended off-road tasks all fit the buyer’s property and transport arrangements. Those checks are more useful than treating the KingQuad 750 name as a complete description of the supplied configuration.
